Using the ultra-efficient NVIDIA Ada Lovelace architecture, the GeForce RTX 4060 can tackle the newest games and applications. With the Graphics Card, users experience immersive gaming with ray tracing and DLSS 3, all powered by AI. With NVIDIA Studio, users can supercharge creative processes and productivity.

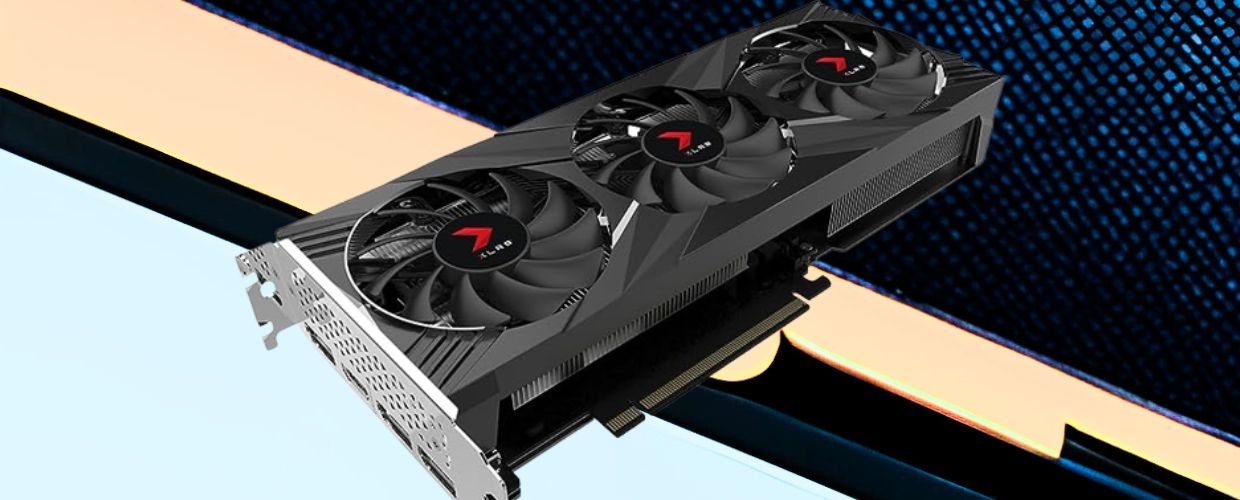

NVIDIA GeForce RTX 4060 Details
The GeForce RTX 4060 8GB XLR8 has impressive specs, including NVIDIA DLSS 3, an ultra-efficient Ada Lovelace arch, and full ray tracing capabilities. The card boasts a core clock speed of 1830MHz and a boost clock speed 2460MHz, making it perfect for demanding games. It also has 8GB of GDDR6 onboard memory, 3072 CUDA processing cores, and up to 272GB/sec of memory bandwidth, all working together to create stunning visual realism. It has PCI Express 4.0 interface x 16, and the card is compatible with various systems.
Additionally, it has DisplayPort and HDMI outputs for expanded connectivity. The NVIDIA GeForce Experience software with the card is a great way to capture and share videos, screenshots, and live streams with friends. It also helps keep your drivers up to date and optimize your game settings. And finally, the card uses a PCI-Express 4.0 x16 (x8 Active) interface.
Specifications
| NVIDIA CUDA Cores | 3072 |
| Boost Clock / Base Clock (GHz) | 2.46 / 1.83 |
| Standard Memory Config | 8 GB GDDR6 |
| Memory Interface Width | 128-bit |
| NVIDIA Architecture / DLSS | Ada Lovelace / 3 |
| Maximum Display Resolution | 4K at 240Hz or 8K at 60Hz with DSC |
| Standard Display Connectors / Multi Monitor | HDMI, 3x DisplayPort / Up to 4 |
| Maximum GPU Temperature / Idle Power | 90C / 7W |
| Video Playback Power / Average Gaming Power | 11W / 110W |
| Total Graphics Power / Required System Power | 115W / 550W |

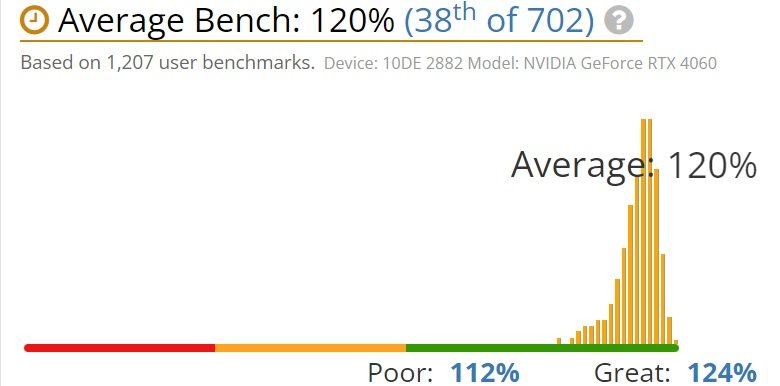

UserBenchmark (Release date ≈ Q2 2023)
The performance of the Nvidia RTX 4060 is outstanding and outperformed the top performers by 20.2%. This impressive outcome positions the Nvidia RTX 4060 among the best on the comparison chart.
